YCT-Z5 Online Cache Print Labeling Machine
Product Application:
Machine description:
This machine is good for flat surface printing and labeling. According to the scanned information, the database matches the corresponding content and sends it to the printer. At the same time, the label is printed after receiving the execution instruction sent by the labeling system, and the labeling head sucks and printing. For a good label, the object sensor detects the signal and executes the labeling action. High-precision labeling highlights the excellent quality of products and enhances competitiveness.
It is widely used in packaging, food, toys, daily chemical, electronics, medicine and other industries.
More options:
An optional ribbon coding machine can be added to the label head, and the production batch, production date and expiration date are printed at the same time. Reduce packaging process, greatly improve production efficiency, special label sensor.
This machine is suitable for products that require large output, with high labeling accuracy of ±0.1mm, fast speed and good quality, and it is difficult to see the error with the naked eye.
Machine covers an area of about 2.38 cubic meters
Support custom labeling machine according to the product.
Working principle:
Put products in the feeding device→ The products are separated one by one → The products are transmitted by the conveyor belt → The product sensor detects the product→The PLC receives the product signal and sends it to the printing system to print the label→ PLC receives the product signal and start labeling→ the conveyor belt send the labeled products to the collecting plate.
Label specification:
①Applicable labels: sticker label, film, electronic supervision code, bar code.
②Applicable products: Products that are required to be labeled on flat, arc-shaped, round, concave, convex or other surfaces.
③Application industry: Widely used in cosmetics, food, toys, chemical, electronics, medicine and other industries.

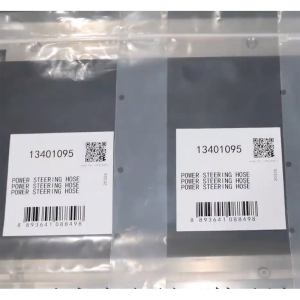

④Application examples: shampoo flat bottle labeling, packaging box labeling, bottle cap, plastic shell labeling, etc.
label production requirements:
1. The gap between the label and the label is 2-3mm;
2. The distance between the label and the edge of the bottom paper is 2mm;
3. The bottom paper of the label is made of glassine, which has good toughness and prevents it from breaking (to avoid cutting the bottom paper);
4. The inner diameter of the core is 76mm, and the outer diameter is less than 280mm, arranged in a single row.
Main Structure:
| No. | Structure | Function |
| 1 | Pagination Device | Separate a stack of pouches/cards/...and feed to the conveyor one by one. |
| 2 | Competer | Import the label data to be labeled |
| 3 | printer | printer the label data to be labeled |
| 4 | Labeling Head | Core of the labeler, includes label-winding and driving structure |
| 5 | Touch Screen | Operation and setting parameters |
| 6 | Conveyor | Transmit product |
| 7 | Electric Box | Place electronic configurations |
Technical parameters:
| Parameter | Date |
| Label Specification | Adhesive sticker, transparent or opaque |
| Labeling Tolerance | ±1mm |
| Capacity(pcs/min) | 10~30 |
| Suit product size(mm) | L:800~1500mm;W:100~300mm H:500~1000m;
Be customized |
| Suit label size(mm) | L:20-150;W(H):20-100 |
| Machine Size(L*W*H) | 1700*1000*1400(mm) |
| Pack Size(L*W*H) | 1750*1010*1450(mm) |
| Voltage | 220V/50(60)HZ; Be customized |
| Power | 1020W |
| N.W(KG) | 195.0kg |
| G.W(KG) | 360.0kg |
| Label Roll | ID:Ø76mm; OD:≤300mm |
Features:
1 ) Control System: Japan Panasonic control system , with high stability and extremely low failure rate.
2 ) Operation System: Touch screen , directly visual interface easy operation. Chinese and English available . Easily to adjust all electrical parameters and have counting function, which is helpful for production management.
3) Detection System: German LEUZE/Italian Datalogic label sensor and Japanese Panasonic product sensor , which are sensitive to label and product , thus ensure high accuracy and stable labeling performance . Greatly saves labor .
4) Alarm Function : The machine will give an alarm when problem occur , such as label spill , label broken , or other malfunctions .
5) Machine Material : The machine and spare parts all use material stainless steel and anodized senior aluminum alloy , with high corrosion resistance and never rust .
6) Equip with a voltage transformer to adapt to local voltage.
