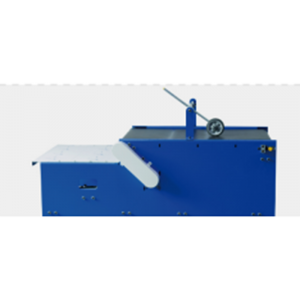

YCT-650A Automatic Folding Box Double Side Tape Applicator
Product Application:
Machine description:
As a high Double Side Tape Applicator manufacturer, facing the problems of “low efficiency, poor precision and high cost” in the folding box market, CSM launched automatic ST series folding box tape applicator successfully. It has been highly recognized by well-known users at home and abroad. It provides the best solution for the packaging of high end cosmetic, luxury goods, jewelry, red wine etc.
| Feeder SectionIndependent feeding belt makes the machine adjustment simple and feeding smooth. With the special feeding part, the scratches are missing. |  |

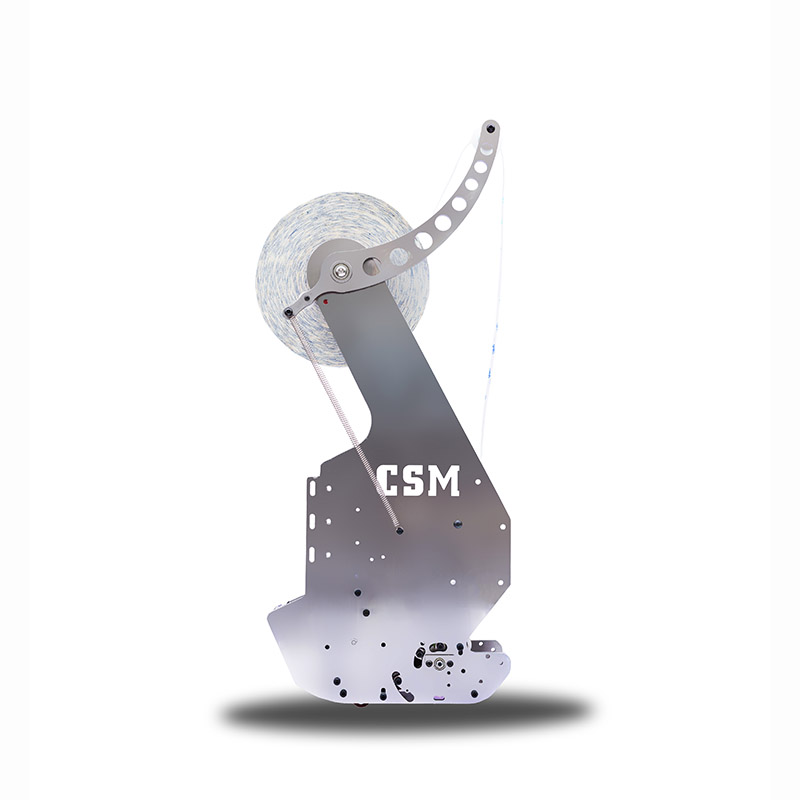

| Tape ApplicatorWith the special vacuum suction platform, the delivery is more smooth and sticking more precise. |  |
| CalibrationHigh-precision calibration with special equipment are more suitable for irregular products.. |  |
| CollectionScale-type collection and independent motor driving simplify the collection. |  |
Specifications:
| Model： |
YCT-650A |
| Material ： | Over 200 g/m² cardboard, grey board |
| Open blank ： | min. 80 mm x 50 mm |
| max.650 mm x 650 mm | |
| Working width： | 650 mm |
| Conveyor speed ： | 45m/min（Depends on different boxes and tape type） |
| Tape roll width ： | 30 – 100 mm |
| Precision： | + / -1.5mm （Depends on different boxes and tape type） |
| Number of installable tape applicators： | 2 sets label tape applicator heads |
| Power required： | 7.5 KW(380V AC 3φ 50HZ) |
| form advance： | Automatic feeding |
| Weight： | Approx. 1400KG |
| Machine Size： | 3350*1408*1520mm(L*W*H) |
Certificate:
Video:
We have been deeply inivolved in the field of full
automatic packing equiments for more than 20 years.
We insist on making high-quality products, insisting on
making every product well, and providing customers
with better solutions, to bring safe, reliable and cost-
effective packaging machines and service to our
customers.
