YCT-61 Automatic Round Bottle Labeling Machine
Short Description:

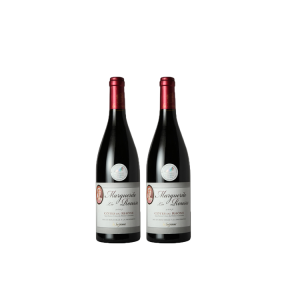

It’s a round bottle lableing machine, works well for kinds of round bottles with one label, and two labels. Such as cosmetic round bottles, red wine bottles, medicine bottles, cone bottles, plastic bottles, PET round bottle labeling, plastic bottle labeling, food cans, no Bacterial water bottle labeling, etc.
Machine description:
Machine description:
It is widely used in round bottle labeling in food, cosmetics, wine making, medicine, beverage, chemical industry and other industries, and can realize semicircular labeling.
It can realize full-week labeling and half-circle labeling, or double label labeling on the front and back of the product, and the spacing between the front and back labels can be adjusted.
Optional functions:
① Optional automatic rotary bottling machine.
② It can be directly connected to the production line to realize automatic bottling and improve production efficiency.
③ The optional ribbon coding machine can print production date, expiration date and production batch online, which reduces the bottling process and greatly improves production efficiency.
④ Automatic feeding function (combined with product consideration);
⑤ Automatic material collection function (combined with product consideration);
⑥ Increase labeling device;
The adjustment method is simple. It adopts the method of covering and labeling, which can be labeled according to the product positioning. The labeling accuracy is high, and the error is difficult to see with the naked eye. It is the best choice for products that require high yields.
It covers an area of approximately 2.92 cubic meters
work process:
working principle: Input Signals from product Sensor and label sensor are processed by PLC, then PLC outputs signals to control the traction motor and solenoid valve to start positioning labeling
Labeling Process：Bottles are transmitted from the filling line→Bottle- separating Device→ Bottles are separated one by one to ensure labeling time for each bottle →
The product sensor detects the bottle→ PLC receives the signal ,air cylinder move forwards, Labeling start→ label-covering completed, air cylinder backwards→ the conveyor belt send the labeled bottles to recycling line…
Label specification:
①Applicable labels: sticker label, film, electronic supervision code, bar code.
②Applicable products: Products that are required to be labeled on flat, arc-shaped, round, concave, convex or other surfaces.
③Application industry: Widely used in cosmetics, food, toys, chemical, electronics, medicine and other industries.
④Application examples: shampoo flat bottle labeling, packaging box labeling, bottle cap, plastic shell labeling, etc.
label production requirements:
1. The gap between the label and the label is 2-3mm;
2. The distance between the label and the edge of the bottom paper is 2mm;
3. The bottom paper of the label is made of glassine, which has good toughness and prevents it from breaking (to avoid cutting the bottom paper);
4. The inner diameter of the core is 76mm, and the outer diameter is less than 280mm, arranged in a single row.
The above label production needs to be combined with your product. For specific requirements, please refer to the results of communication with our engineers!
Main Structure:
| No. | Structure | Function |
| 1 | Double Side Guardrails | Keep the bottles goes straightly,can be adjusted according to the diameters of the bottles. |
| 2 | Labeling Head | Core of the labeler ,including label-winding and driving structure. |
| 3 | Touch Screen | Operation and setting parameters. |
| 4 | Collection Plate | Collect the labeled products. |
| 5 | Strengthening Sponge Roller | Press labeled product to strengthen labeling. |
| 6 | Spacing Wheel | Makes every 2products keep certain distance. |
| 7 | Emergency Stop | Stop the machine if it runs wrong. |
| 8 | Electric Box | Place electronic configurations. |
| 9 | Rotary Belt | Driven by a motor to rotate products while labeling. |
| 10 | Bottle-fixing Cylinder | Drive the fixing device to fix product while labeling |
| 11 | Filter | Filter water and impurities |
| 12 | Adjusters | Used to adjust labeling position |
| 13 | Rotary Roller | Driven by a motor to rotate product while labeling |
Technical parameters:
| Parameter | Date |
| Label Specification | Adhesive sticker,transparent or opaque |
| Labeling Tolerance | ±1mm |
| Capacity(pcs/min) | 25~60 |
| Suit product size(mm) | φ25mm～φ120mm H:25~150;Can be customized |
| Suit label size(mm) | L:20-380;W(H):20-130 |
| Machine Size(L*W*H) | 1950*1200*1450(mm) |
| Pack Size(L*W*H) | 2000*1250*1500(mm) |
| Voltage | 220V/50(60)HZ;Can be customized |
| Power | 865W |
| N.W(KG) | 185.0kg |
| G.W(KG) | 220.0kg |
| Label Roll | ID:Ø76mm; OD:≤260mm |
Features:
1 ) Control System: Japan Panasonic control system , with high stability and extremely low failure rate.
2 ) Operation System: Touch screen , directly visual interface easy operation.Chinese and English available . Easily to adjust all electrical parameters and have counting function , which is helpful for production management.
3) Detection System: German LEUZE/Italian Datalogic label sensor and Japanese Panasonic product sensor , which are sensitive to label and product , thus ensure high accuracy and stable labeling performance . Greatly saves labor .
4) Alarm Function : The machine will give an alarm when problem occur , such as label spill , label broken , or other malfunctions .
5) Machine Material : The machine and spare parts all use material stainless steel and anodized senior aluminum alloy , with high corrosion resistance and never rust .
6) Equip with a voltage transformer to adapt to local voltage.
