YCT-51 Automatic One Side Labeling Machine

Short Description:

Send email to us

Product Detail

Full auomtaic packing machine solutions

Product Tags

Product Application:

Machine description:

The automatic single-side labeling machine is suitable for labeling or self-adhesive film on the upper surface of various items, such as books, folders, boxes, cartons and other single-side labeling, high-precision labeling, highlighting the excellent quality of products and improving Competitiveness. It is widely used in printing, stationery, food, daily chemical, electronics, medicine, and other industries.
The additional functions to add options:
①　An optional ribbon coding machine can be added to the label head, and the production batch, production date and expiration date can be printed at the same time. Reduce packaging process, greatly improve production efficiency, special label sensor.
②　Automatic feeding function (combined with product consideration);
③　Automatic material collection function (combined with product consideration);
④　Increase labeling device;
It is suitable for products that require large output. The labeling accuracy is high ±0.1mm, the speed is high, the quality is good, and the error is difficult to see with the naked eye.
Machine covers an area of about 5.8 cubic meters
Support custom labeling machine according to the product.

work process:

working principle:
This part of the principle for our own research and development, if interested, welcome to consult.
Labeling Process：
Connect to production line/Feeding manually →The products are separated one by one →The product sensor detects the product→ PLC receives the product signal → Labeling→Collecting plate

Label specification:

①Applicable labels: sticker label, film, electronic supervision code, bar code.
②Applicable products: Products that are required to be labeled on flat, arc-shaped, round, concave, convex or other surfaces.
③Application industry: Widely used in cosmetics, food, toys, chemical, electronics, medicine and other industries.
④Application examples: shampoo flat bottle labeling, packaging box labeling, bottle cap, plastic shell labeling, etc.

label production requirements:

1. The gap between the label and the label is 2-3mm;
2. The distance between the label and the edge of the bottom paper is 2mm;
3. The bottom paper of the label is made of glassine, which has good toughness and prevents it from breaking (to avoid cutting the bottom paper);
4. The inner diameter of the core is 76mm, and the outer diameter is less than 280mm, arranged in a single row.

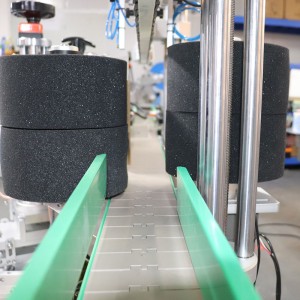

Main Structure:

No.	Structure	Function
1	Conveyor	transmit product.
2	Double Side Guardrails	keep the products go straightly, can be adjusted according to product size.
3	Spacing Wheel	makes every 2 products keep certain distance.
4	Double Side Guiding Belt	correct product transmission direction, can be adjusted according to product size.
5	Labeling Head	core of the labeler,including label-winding and driving structure.
6	Label-peeling Plate	peel label from the release paper.
7	Brush	smooth the labeled surface.
8	Touch Screen	operation and setting parameters
9	Top Belt	synchronous with the conveyor and traction device, fix product from the top
10	Top Belt Adjuster	adjust the height of the top belt to adapt to different products.
11	Strengthening Device	Press labeled product to strengthen labeling.
12	Main Switch
13	Emergency Stop	stop the machine if it runs wrong.
14	Electric Box	place electronic configurations.

Technical parameters:

Parameter	Data
Label Specification	adhesive sticker, transparent or opaque
Labeling Tolerance	±1mm
Capacity(pcs/min)	40~120pcs/min(influenced by the size of the product and label)
Suit bottle size(mm)	L:20~200 W:40~250 H:0.2~150;Can be customized (We can make it according to your sample diameter)
Suit label size(mm)	L: 15-200; W(H): 15-180
Machine Size(LWH)	310013001560 (mm)
Pack Size(LWH)	305015001650 (mm)
Voltage	220V/50(60)HZ;Can be customized
Power	1740W
N.W (KG)	300.0kg
G.W(KG)	340.0kg
Label Roll	ID: Ø76mm;OD:≤300mm

Features:

1 ) Control System: Japan Panasonic control system , with high stability and extremely low failure rate.
2 ) Operation System: Touch screen , directly visual interface easy operation.Chinese and English available . Easily to adjust all electrical parameters and have counting function , which is helpful for production management.
3) Detection System: German LEUZE/Italian Datalogic label sensor and Japanese Panasonic product sensor , which are sensitive to label and product , thus ensure high accuracy and stable labeling performance . Greatly saves labor .
4) Alarm Function : The machine will give an alarm when problem occur , such as label spill , label broken , or other malfunctions .
5) Machine Material : The machine and spare parts all use material stainless steel and anodized senior aluminum alloy , with high corrosion resistance and never rust .
6) Equip with a voltage transformer to adapt to local voltage.
