Yucheng Machinery

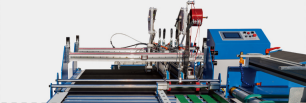

YCT-1450 Fully Automatic Online Shopping Box Tape Application Machine
Product Application:
Machine description:
This series automatic online shopping box tape applicator machine is an integrated solution for the global cross-border e-commerce carton to paste, fold and form. At present, it is aimed at special-shaped “”zipper carton, “cross-border mail box”, “post online shopping box” and it obtains a large market share. It has completely solved the problems of abnormal bending unsmooth feeding, production loss and others. The machine is simple and convenient to adjust, and can be operated with no experience and simple training.
| Friction Belt Feeder SectionThis new design concept mainly focuses on irregular corrugated cartons. Horizontal feeding with the help of independent vibration motor completely solved the on smooth feeding of irregular and bent boards. |  |
| Calibration Correction DeviceIndependent orientation, one side as the base to calibrate the box direction which makes the tape sticking precisely. The roller design makes the transport more stable. The upper presser and under board can be adjusted according to the products’ demand. This can keep the precision of sticking. Individual motor driving makes the machine running stably. |  |
| Tape ApplicatorIt is more humanity in adjusting and products changing. It is straight tracker in adjusting part. CSM self-developed 90 degree turning bracket is using on this machine. This technology decreases the dependability of the operator’s technical. Even without experience, the operators can run it easily with simply training. |  |
| Conveyor SectionThe import 2mm thickness belt is soft enough for protecting products from pressing damage. Stack collection structure perfect the products quality. There is a products counting option. |  |
| Electrical ControllerUsing the latest PLC controller system, equiped with European and Japanese Intenational brand electrical contrl components, simple circuit control precedures, stable operation, low failure rate, convenient maintenance.
|
 |
Specifications:
| Model： |
YCT-1450 |
| Material ： | Over 300 g/m² cardboard, corrugated board |
| Open blank ： | min. 300 mm x 300 mm |
| max.1450 mm x 1050 mm | |
| Working width： | 1050 mm |
| Conveyor speed ： | 90m/min（Depends on different boxes and tape type ） |
| Tape roll width ： | 5 – 40 mm |
| Precision： | + / -1.5mm （Depends on different boxes and tape type） |
| Number of installable tape applicators： | 2 sets double side tape applicator heads
1 set tearing tape applicator head |
| Power required： | 3.2 KW(380V AC 3φ 50HZ) |
| Air Required: | Min. 6 bar |
| form advance： | Automatic feeding |
| Weight： | Approx. 1800KG |
| Machine Size： | 5700*2450*1200mm(L*W*H) |
