YCT-00 Fully automatic egg tray labeling machine
Product Application:
Basic use:

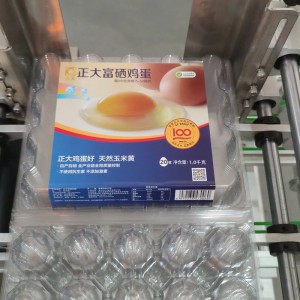

It is suitable for the top plane labeling machine of products, such as fruit boxes, egg boxes and other square products for top plane labeling; the robot automatically picks up the box and sends it to the conveyor for labeling, then automatically collects the boxes. In this case, eggs Box labeling, stable performance, greatly improving production efficiency; it can be used as a stand-alone machine or connected with a front-end injection molding machine.
Application:
◆ Labels: self-adhesive labels, self-adhesive films, electronic supervision codes, barcodes, etc.
◆ Products: products that require labeling on the top plane and corners of the upper plane.
◆ Industry: Widely used in plastics, packaging, and fresh food industries.
◆ Application examples: labeling of fruit boxes, egg boxes, etc.
Working process:
◆Operation process: put stacked boxes—>boxes sorting—>conveying—>labeling (automatically realized by equipment)—>automatically collect labeled boxes.
Parameters:
(the following are the technical parameters of standard models, other special requirements and functions can be customized).
◆ Applicable label length (mm): 50mm～200mm
◆Applicable label width (backing paper width/mm): 50mm～150mm
◆ Applicable label outer diameter (mm): φ280mm
◆ Applicable label inner diameter (mm): φ76mm
◆ Labeling accuracy (mm): ±1.0mm
◆ Labeling speed (pcs/min): 24～45pcs/min
◆ Conveying speed (m/min): 10~16m/min
◆ Power (W): 1800W
◆ Frequency (HZ): 50HZ
◆ Voltage (V): 220V
◆ Weight (kg): about 330kg
◆ Machine sizes (L× W × H): 3500mm × 1450mm × 2000mm
